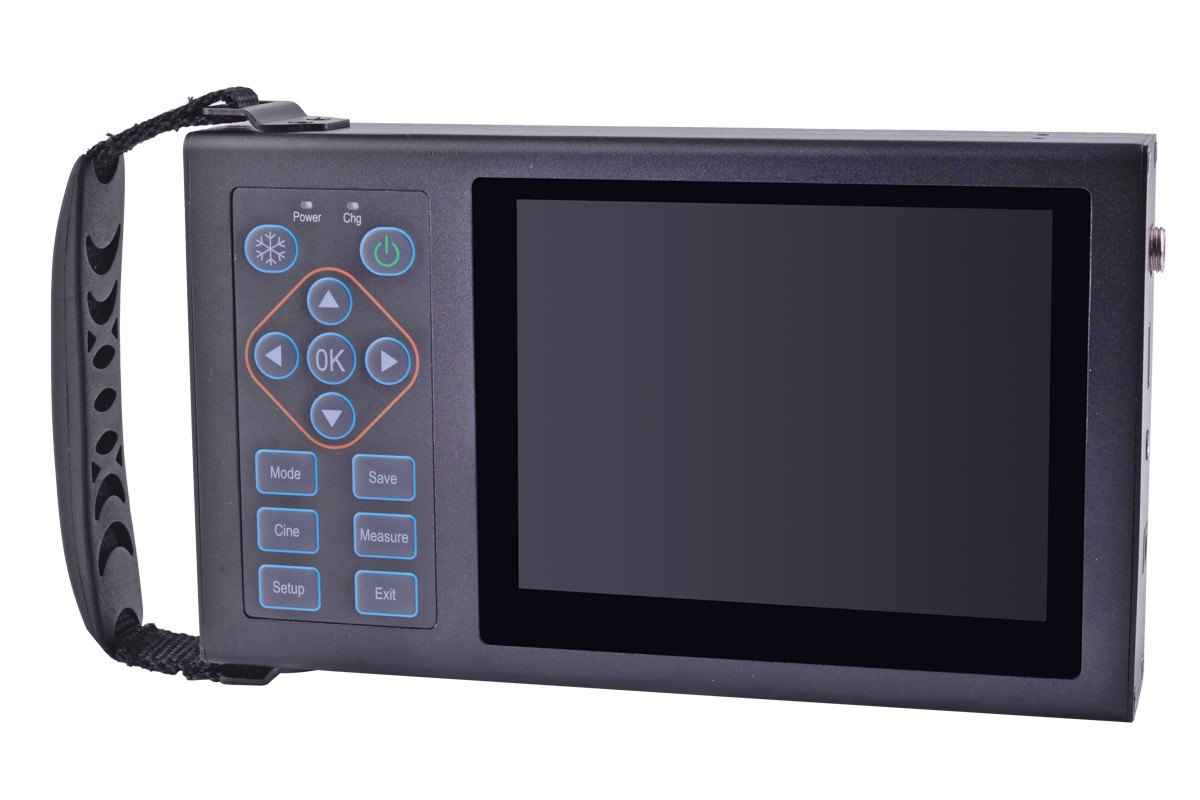

BU200 serial B supersonic diagnostic sets from China HSVET were designed for pregnancy and medical testing of pets and farm animals.
here are three configurations

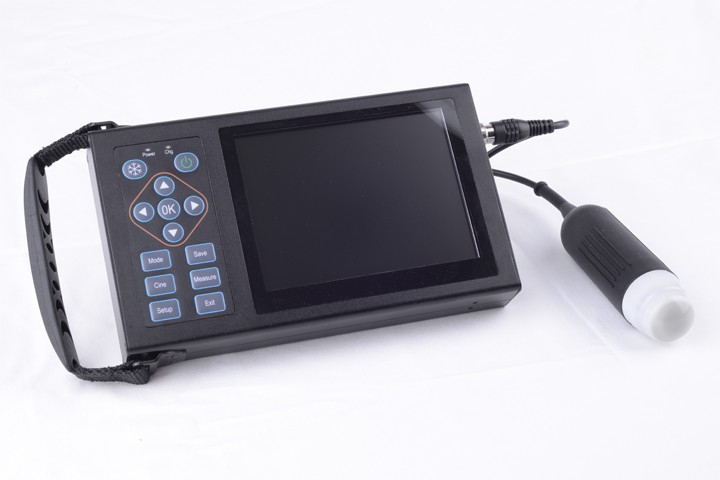

- BU201 is suitable for pigs/swine, and sheep/goats; it only supports the 3.5 MHz mechanical transducer.
- BU202 is suitable for pigs/swine, sheep/goats, dogs, and cats; It only supports the 3.5 MHz convex array probe.
- BU203C is suitable for pigs/swine, sheep/goats, dogs, cats, cattle, horses, and camels; It supports seven types of electronic sensors.
Each plan contains the following items:
- 1 piece of Ultrasonic Scanner host With 5.6 inch LCD Screen
- 1 piece of scanning probe
- 1 piece of Power adapter/ Battery Charger
- 1 piece of Aluminum & Plastic made Packing Box
- 1 piece of Paper User Manual in English
Available Plans and their difference
- Basic BU201
- Price: from $ 500
- Pig/Swine, Sheep/Goat
- Basic/routine measurement: available
- Cardiac measurement: N/A
- Obstetric measurement: N/A
- Backfat measurement: Manual + Caliper Tool
- Only Support the 3.5MHz mechanical probe
- Built-in Memory: N/A
- TF Card Extension: N/A
- Shoulder Strap: N/A
- Lens Hood: N/A
- aluminum plastic suitcase
- Price: from $ 500
- Inquiry Now!
- Pro BU202
- Price: from $ 850
- Pig/Swine, Sheep/Goat + Dog, Cat
- Basic/routine measurement: Available
- Cardiac measurement: Available
- Obstetric measurement: Available
- Backfat measurement: Manual + Caliper Tool + Automatic

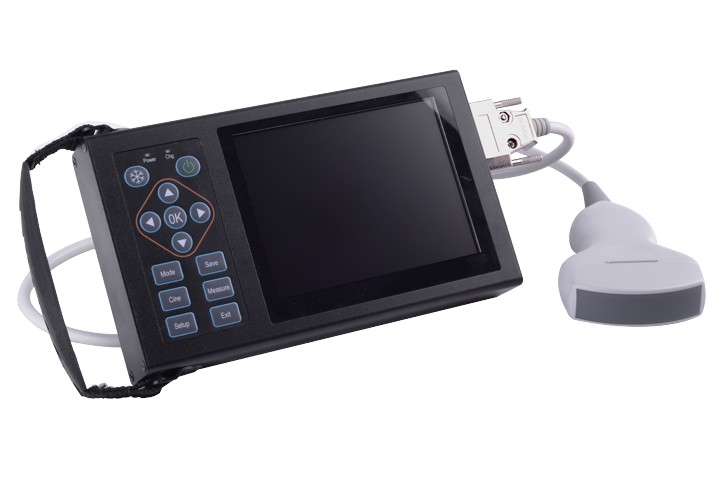

- Only Support the 3.5MHz Abdominal convex array probe
- Built-in Memory: N/A
- TF Card Extension: Available
- Shoulder Strap: N/A
- Lens Hood: N/A
- aluminum plastic suitcase
- Price: from $ 850
- Inquiry Now!
- Premium BU203C
- Price: from $ 1300
- Pig/Swine, Sheep/Goat + Dog, Cat+ Cattle, Horse, Camel
- Basic/routine measurement: available
- Cardiac measurement: Available
- Obstetric measurement: available
- Backfat measurement: Manual + Caliper Tool + Automatic

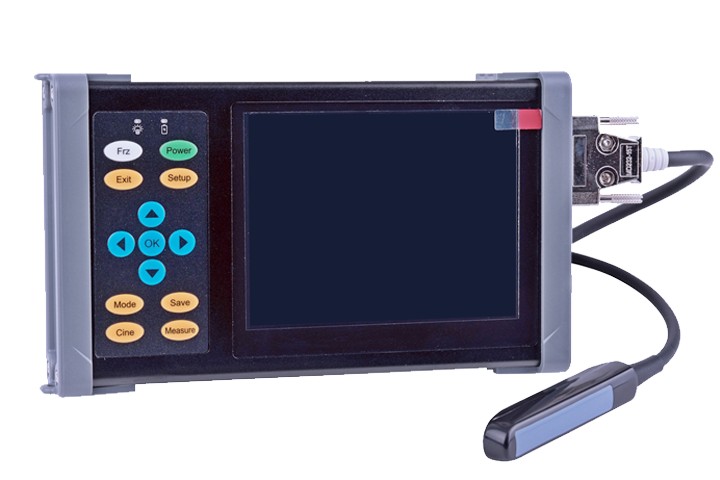

- Support 7 types of electronic transducers, default with 6.5MHz rectal linear array probe
- Built-in Memory: 32G
- TF Card Extension: Available
- Shoulder Strap: Available
- Lens Hood: Available
- waterproof suitcase
- Price: from $ 1300
- Inquiry Now!
The Same Features of All Plans
Except for the differences in the table above, all these models have the same details as shown below.
The Same Hardware
- The metallic Shell makes the host lightweight, which is only 0.95 kg

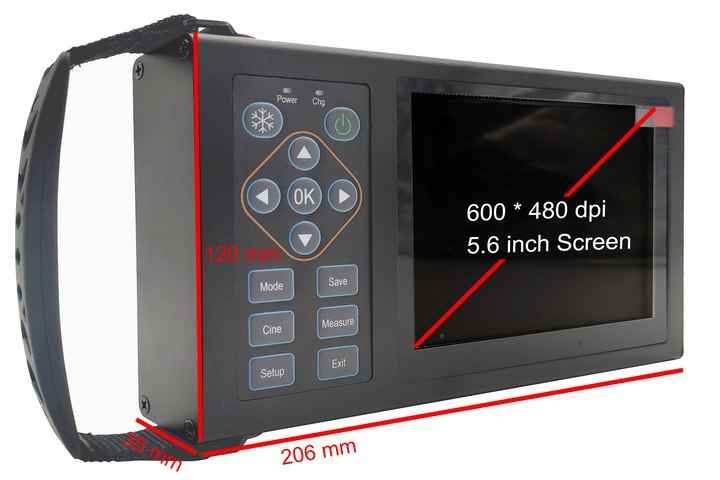

- Small size (206 * 120 * 35 mm), which is easy to handhold
- 5.6-inch LCD Screen, 600 * 480 dpi
- Embedded 2600 mAh lithium battery, continuously working for more than 4 hours, with an editable auto power off time option.
- The battery charger for handheld B-ultrasound allows input from 100V to 240V, which is adaptive, and outputs 14V and 3.0A.

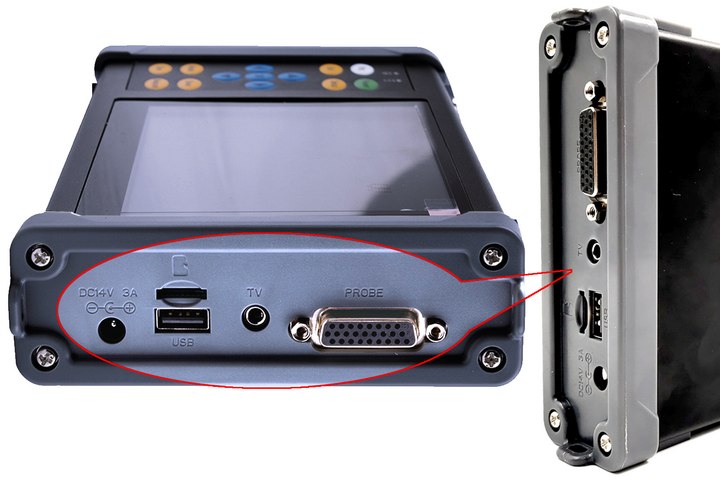

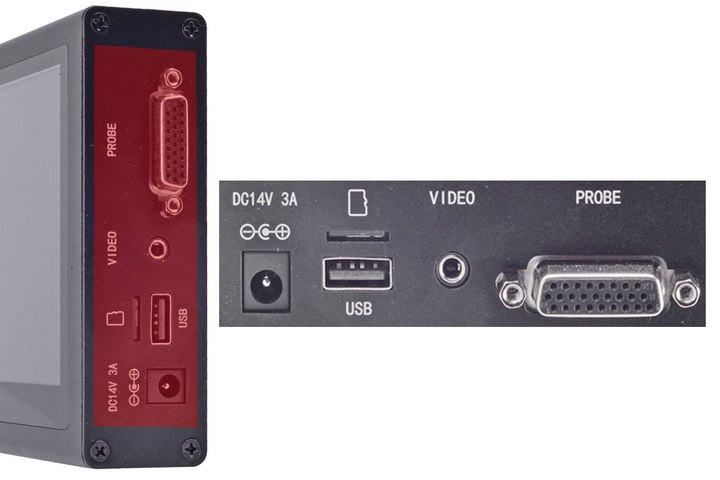

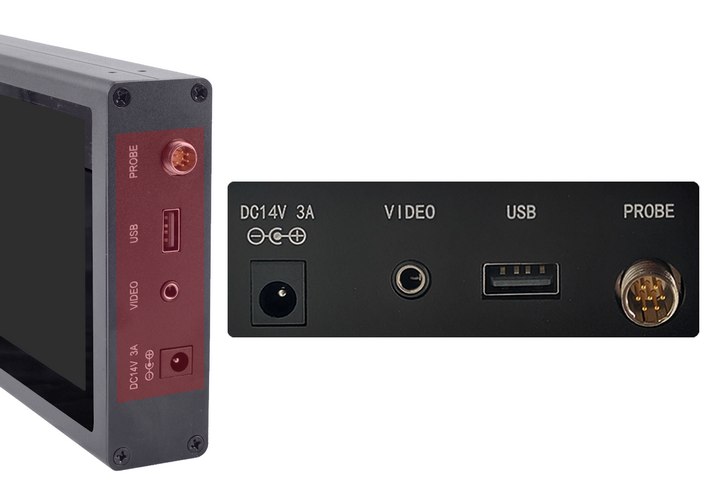

- Video output port and USB 2.0 Port
- With a suitcase
The Same Functions
- Provides Grid-scale and Dot-scale
- Support the basic/routine Pregnancy testing for animals, which covers the measurement of distance, perimeter, area, volume, angle, etc.
- Support the backfat measurement for pigs and swine
- Support 16 kinds of Pseudo colors.
- Support Video Playback 256 FPS
- Supports Five Image Display Modes
- Support Image Rotary and Flip Reverse
The Same Parameters
- Languages: one of English, Spanish, Russian, French and Portuguese
- Restore Factory Defaults: Available
- 16 Channels
- Dynamic Range from 0 to 135 dB
- Gain Range: from 0 to 100 dB
- Max detect Depth is 270 mm
- Electron Beam Focusing: 4 Levels
